Linear Grilles

There are two designs of linear grilles, framed or unframed.

Either grilles are offered with a choice of 3/4" x 1/8" (19 x 3mm) or 3/4" x 1/4" (19 x 6mm) bars. The bars can be spaced at either 1/4" (6 mm) or 3/8" (10mm).

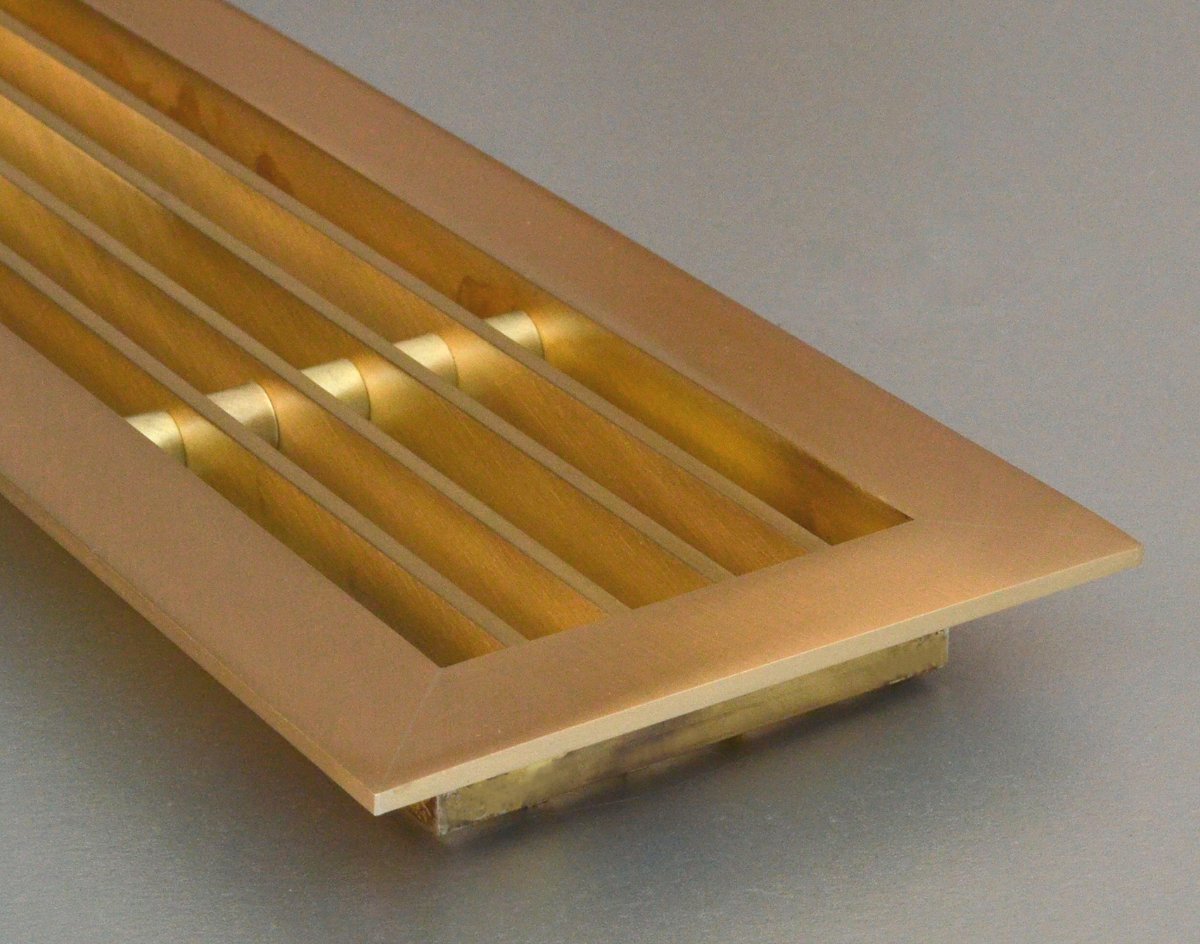

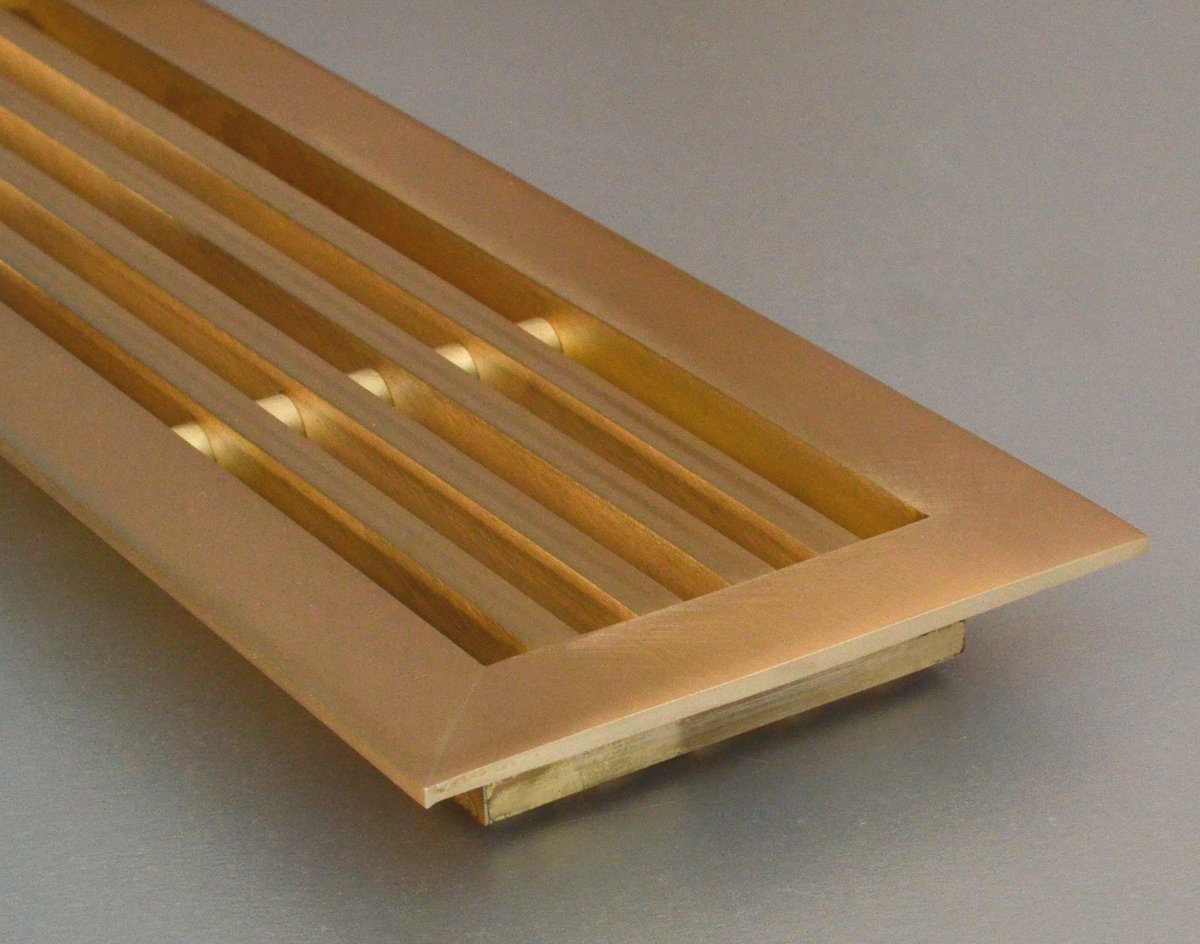

If required, the bars can be angled at 15 degrees to deflect the air flow. Framed grilles are manufactured using 3/4" x 1/8" (19 x 3mm) brass angle. All linears are available in a number of special finishes.

As the linear grilles are made to order, if you require different spacing, bar size or frame size then please contact us.
